Intermediate Frequency Induction Furnace

Function

This intermediate frequency induction furnace used for melting ferrous metal, non-ferrous metal such as copper, aluminum, etc. It can also be used for bending pipe, quenching and all kinds of metal bar's diathermy.

Environment and condition usage

1.Temperature should be at 2℃ to 35℃.

2. The relative humidity no more than 90%

3. Installation height no more than 1000m

4. No conductive dust and corrosive gas in working place.

5. No explosion and violent vibration room around the place

6. The temperature of the the cooling water should no less than 10℃, not more than 30℃, hardness<8 degree, Ph0.2Mpa.

7. Power supply must be ac 50Hz, three-phase, 380V,Voltage fluctuation 370-410Volts.

Instruction of furnace overview

This equipment is composed of furnace body, tilting controller, water cooled cable, capacitor, medium frequency, water cooling plant.

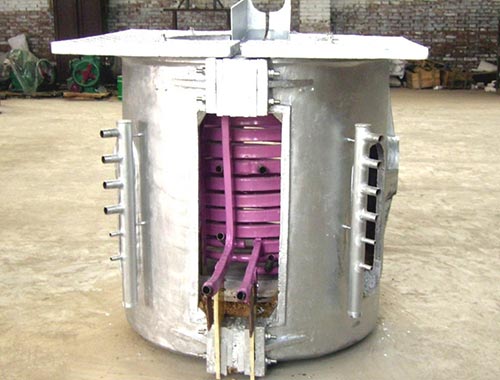

1. Furnace Body

Furnace structure has four type, aluminum reduction tilting furnace, aluminum hydraulicking furnace, magnetic shielding steel furnace and hydraulic steel furnace reduction tilting furnaces equip with reduction machine, hydraulic tilting furnaces equip with hydraulic pump and work station. The whole sets generally have two furnaces using for melting and maintenance.

Induction coil installs in the central of the furnace, it has spiral body with rectangular empty brass circle around, the pipe center should be cooled with water. Copper bar outside induction coil will connect with water-cooling cable. The lining closes to induction coil, which made by burden, the method you can find in related parts below

2. Tilting Controller

The controller is a control box for tilting furnace. The switch on the controller can choose furnaces and the button can move around through the rubber soft line, and also control the furnace for tilting and resetting(this part should be installed by users themselves)

3. Water-cooled cable

Water cooled cable is made of soft copper wire, hose,cable end, through them to connect with capacitor and furnace.

4. Capacitors

Capacitors compose of electric heat, holder, the converge-wires. it supply power.

5. Medium Frequency power cabinet

Medium frequency power cabinet will transmute three-phase ac power frequency into medium ac power.

6. Water-cooling plant(Prepared by user)

Water cooling plant include water inlet and outlet water tank, it supply for an induction coil. water-cooled electric cable and cooling water in capacitor, can be divided into five ways, usually using only three ways(once melting furnace doesn't work the water in the induction coils and cooling cable can be close down through the valve).
