10 Stands Top Crossed 45 Degree Wire Rod Mill

As a professional China Submerged Arc Furnace manufacturer, we are equipped with a famous factory and plant and engineers with decades experience, as well as providing with Electric Arc Furnace, Induction Heating Furnace, CCM Machine, TMT Re-bar Mill, Wire Rod Mill, finishing mill, reversible rolling mill, cold rolling mill, section rolling mill, etc.for sale, welcome to visit and check the process and layout with Hani Metallurgy Equipment Co., Ltd.



Structural Characteristics and Function of the Equipment

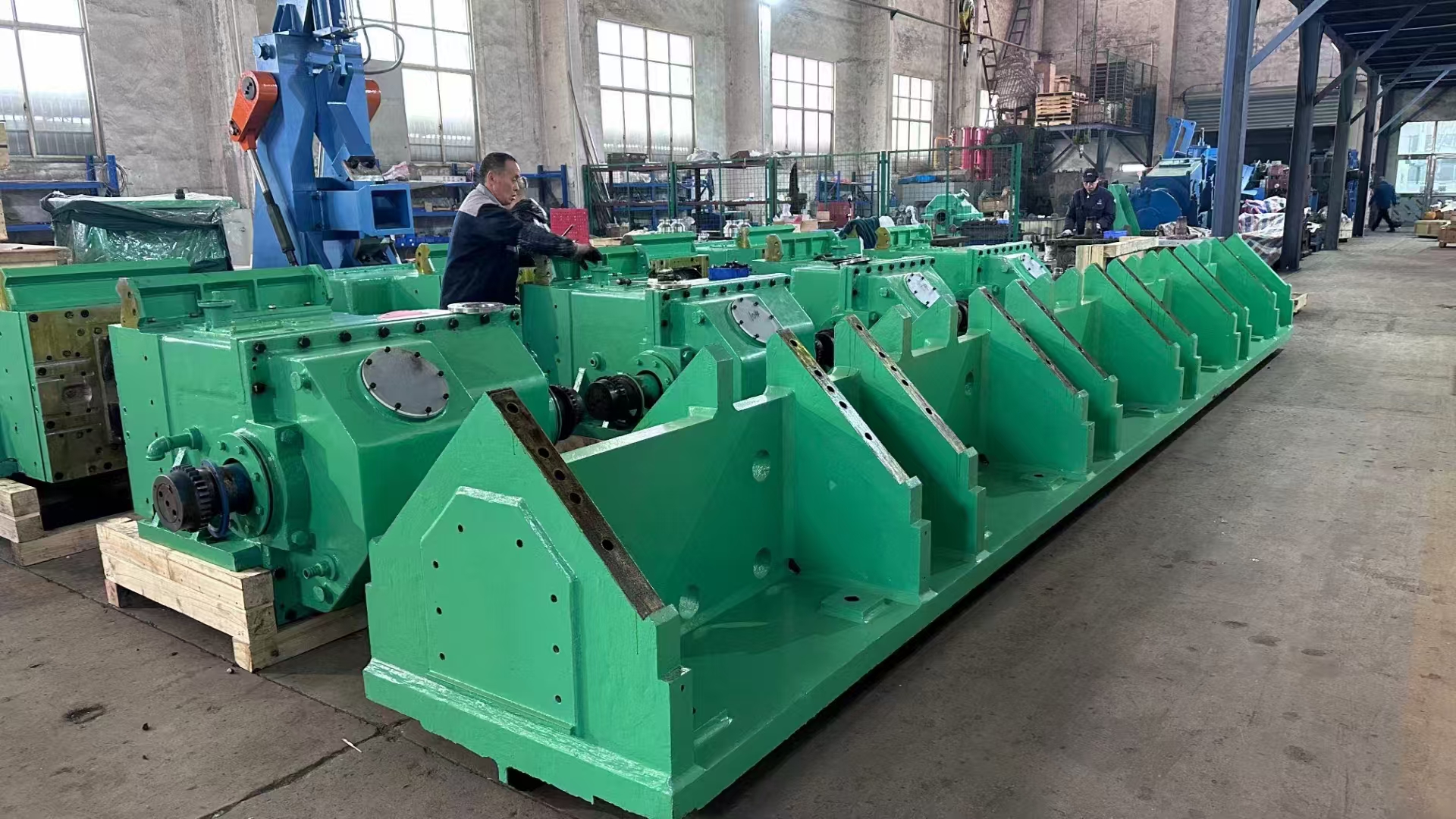

The finishing mill group is designed for high speed wire rod production line of heavy top 45 ° high speed wire rod finishing mill group, and is located in high-speed wire-rod workshop. Finishing mill unit is combined with 10 mills, three Φ200 mills and seven Φ150 mills, speed increasing box, support base, arc coupling, waterproof slot, waterproof plate, buffer tank, the protective cover, coupling, piping and guide of finishing mill. Through 10 unit rack the continuous micro-tension rolling mill will be transported upstream Φ17 ~ Φ21 mm of rolling piece, rolling become Φ5.5 ~ Φ16  mm finished wire. The working speed of 75 m/s is insured. (The specification of end products is Φ5.5 mm.)

TAG:  finishing mill group wire rod high speed wire rod finishing mill unit finishing mill



Main Technical Performance

Technological Parameter

Material Specification: Φ16 ~ 20 mm

Material Temperature: >850℃

Produce Specification: Φ5.5 ~ 16 mm

The kinds of rolling steel: carbon steel, low alloy steel, high alloy steel, high-quality carbon structural steel, stainless steel, tool steel titanium alloy

Speed of the exit of tenth frame: 75 m/s

TAG:  finishing mill group wire rod high speed wire rod finishing mill unit finishing mill

Equipment Performance

The form of mill: cantilever roller loop mill

The quantity of frame: 10 (1~3 frame are Φ200 mill, 4~10 frame are Φ150 mill)

Design method: top crossed 45°, 10 frame concentrated transmission.

Size of roll loop:

Φ200 mill: Φ210.5~Φ189.5 x Φ120.65 x 72 mm

Φ150 mill: Φ158.8~Φ142.9 x Φ87,76 x 62 mm

Strength of rolling:

Φ200 mill: 152 kN

Φ150 mill: 107.8 kN

Space of rolling:

Transmission motor: DC motor

Power: 1600kW x three or 4500kW AC inverter motor

Rotating speed: 100 ~ 1300 r/m

Working rotary speed: 900 ~ 1100 r/m

Methods of lubrication: thin oil concentration lubricated

System oil pressure; 0.35 ~ 0.6 MPa

Consumption: 1200 L/min

Oil: Mobil 525

Cleanliness: 10 U

Cooling for roll: water pressure： 0.6 MPa

Consumption: maximum is 10 x 30m3/h

Hydraulic pressure system of protective cover:

Working pressure: 20 MPa

System flow: 35 l/min

Working pressure of load roll: Max.25 MPa

Working pressure of unload roll: Max.45 MPa

Accessory:

Unload roll toll (Φ200)       1 set

Loading roll tool (Φ200)       1 set

Unload roll tool (Φ150)         1 set

Loading roll tool (Φ150)        1 set

Roll change hydraulic pump      1 set



Service:
- We can provide foundation layout and arrangement diagram
- Trustworthy after-sales service, we will send engineers to your factory to install and debug the machines
- Competitive price & excellent quality
- Our machines are easy operation and maintenance
- Lower investment
- Steady performance
- Products are customized for different needs
- Production capability can be adjusted according to customers' request
- Low energy consumption



As a professional Finishing Mill Group / Wire Rod Mill manufacturer in China, We can supply designing, manufacturing, installation and commissioning of the equipment with "turn-key" service. We can also design, manufacture and revamp other non-standard requirement according to the requirements of users.



Please send us more information about your project, we would like to give you our proposal immediately after getting your details. Sincerely welcome you to come and visit our plant.
