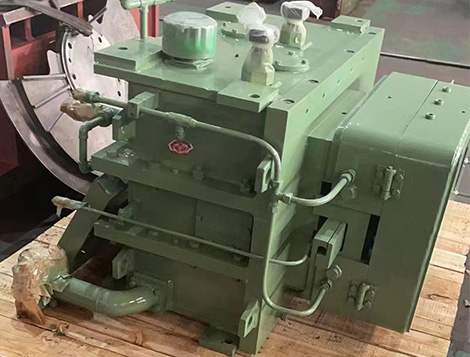

Pinch Roll for Rolling Speed 135m/s

As a professional China Submerged Arc Furnace manufacturer, we are equipped with a famous factory and plant and engineers with decades experience, as well as providing with Electric Arc Furnace, Induction Heating Furnace, CCM Machine, TMT Re-bar Mill, Wire Rod Mill, finishing mill, reversible rolling mill, cold rolling mill, section rolling mill, etc.for sale, welcome to visit and check the process and layout with Hani Metallurgy Equipment Co., Ltd.

Equipment Composition and Use

It is the horizontal cantilever structure. It has double roll device and one air cylinder which is used to control roll up and down synchronous clamp. Pinch roll is arranged before entrance of wire discharger, respectively according to the technical requirement pf wire rod head, tail or full clamp clamping work piece and turn it into the wire discharger machine.

Equipment Main Technical Performance

Feeding specification: 5.5~16mm                                Feeding rate: 25~75 m/s

Pinch roll specification: Φ183 x 72mm

Max gripping force: 3350N                                           Maximum line velocity: 90m/s

Speed increasing ratio: 6.92

Electro motor model: DC Z4-180-41 (DC Z4-180-41)

Motor power: 55kW

Motor speed: 1500/3000 r/min

Rolling lubrication system: thin oil central lubrication

Oil pressure: 0.35MPa    Total consumption: 100r/min

Oils:  Mobil 525                                                               Cleanliness: 10μ

Pinch roll's cooling water:

Water pressure: 0.6MPa (turbid circulating water)         Consumption: 2m3/h

Service:
- We can provide foundation layout and arrangement diagram
- Trustworthy after-sales service, we will send engineers to your factory to install and debug the machines
- Competitive price & excellent quality
- Our machines are easy operation and maintenance
- Lower investment
- Steady performance
- Products are customized for different needs
- Production capability can be adjusted according to customers' request
- Low energy consumption

As a professional Pinch Roll for Rolling Speed 135m of Rolling Mill manufacturer in China, We can supply designing, manufacturing, installation and commissioning of the equipment with "turn-key" service. We can also design, manufacture and revamp other non-standard requirement according to the requirements of users.

Please send us more information about your project, we would like to give you our proposal immediately after getting your details. Sincerely welcome you to come and visit our plant.
