Pinch Roll:

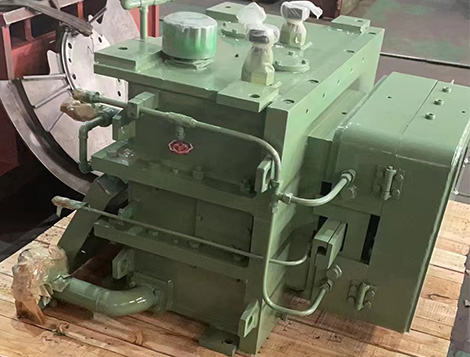

It is the horizontal cantilever structure. It has double roll device and one air cylinder which is used to control roll up and down synchronous clamp. Pinch roll DC motor is used to improve drive speed by two-stage cylindrical gear. Up and down roll are installed respectively at two swing arm. There is one air cylinder which drive the up and down roll synchronous close to or leave rolling line by a group of crank-link mechanism. There is equipped with adjustable limit equipment to adjust pinch roll max opening degree and minimum center distance between up and down roll so that could adjusted the clamp force and wire rod not to fast simultaneously. Pinch roll drive gear box used welding structure. The gear and bearings used thin oil central lubrication process. And the bearings is used filmatic bearing and high speed roll thrust bearing. Pinch roll is long running at regular work and its speed is set by process requirement. Pinch roll can clamp the head, end or whole wire rod on the basis of process requirement.

Equipment Characteristic

Feeding specification: Æ5.5~14mm

Feeding rate: 25~75m/s

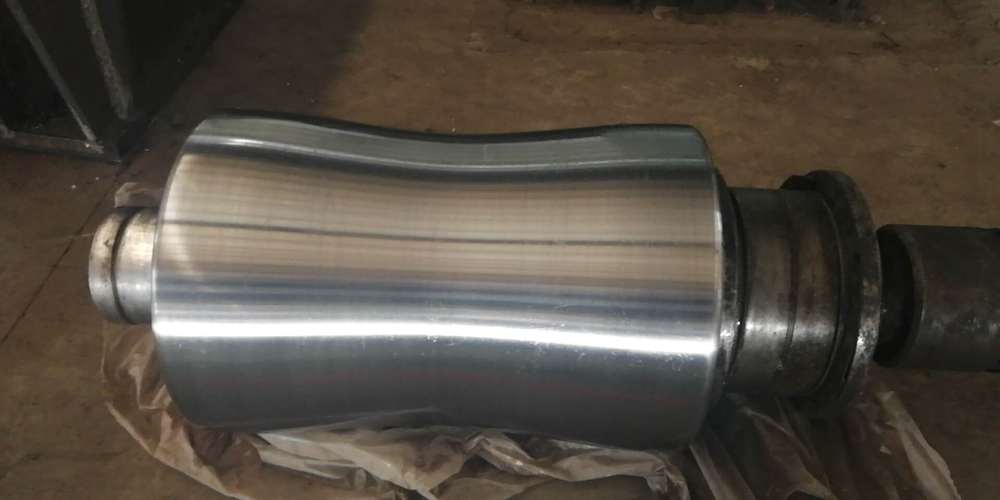

Pinch roll specification: Æ158.8/Æ142.9´62mm; Æ158.8/Æ142.9´62mm

Max gripping force: 350N

Maximum line velocity: 80m/s

Speed increasing ratio: 6.92

Motor: Z4-180-41 (DCZ4-180-41)

Motor power: 55kW

Motor speed: 1500/3000 r/min

Rolling lubricating system: Thin oil central lubrication

Oil pressure: 0.35MPa

Total consumption: 100r/min

Oils: Mobil 525

Cleanliness: 10m

Pinch roll's cooling water:

Water pressure: 0.6Mpa(turbid circulating water)

Consumption: 2m3/h
