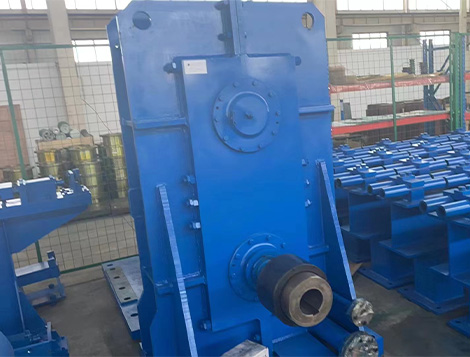

135m Increasing Gearbox Units

As a professional China 135m Increasing Gearbox Units manufacturer, we are equipped with a famous factory and plant and engineers with decades experience, as well as providing with CCM Machine, TMT Re-bar Mill, Wire Rod Mill, finishing mill, rolling mill stand, hot roling mill, section rolling mill, etc.for sale, welcome to visit and check the process and layout with Hani Metallurgy Equipment Co., Ltd.

Equipment Composition and Use

Speed increasing box is composed by case group ( lower box, middle box, cover) and the base, gear, drive shaft, bevel gear shaft and box lubrication system components. Large main motor drives two output shafts which drove by rack wheel on the speed increasing gear box, associated by gear-type coupling and two drive shaft, respectively, driving the racks of right and left sides, by variable speed of the speed increasing gearbox to achieve the rolling desired speed.

High speed output ratio 42/167=0.251497

Low speed output ratio 52/167=0.311377

Motor power 4800KW

Motor speed 750/1200r/min

Motor working speed 1007r/min

High speed output shaft revolving speed 404r/min

Low speed output shaft revolving speed 3234r/min

The gear clearance is less than 0.36mm

Bearing and gear adopt spray lubrication.

Service:
- Professional service will be provided
- We can supply foundation layout and arrangement diagram
- After-sales service provided, we will send engineers to your factory to install and debug the machines
- Competitive price & good quality for you
- Our machines are easy operation and maintenance
- Lower investment
- Steady performance
- Products are customized for different needs
- Production capability can be adjusted according to customers' request
- Low energy consumption

As a professional 135m Increasing Gearbox Units manufacturer in China, We can supply designing, manufacturing, installation and commissioning of the equipment with “turn-key” service. We can also design, manufacture and revamp other non-standard requirement according to the requirements of users.

Please send us more information about your project, we would like to give you our proposal immediately after getting your details. Sincerely welcome you to come and visit our plant.
